Why we went with the M-Shape for our Carbon Fiber Heaters

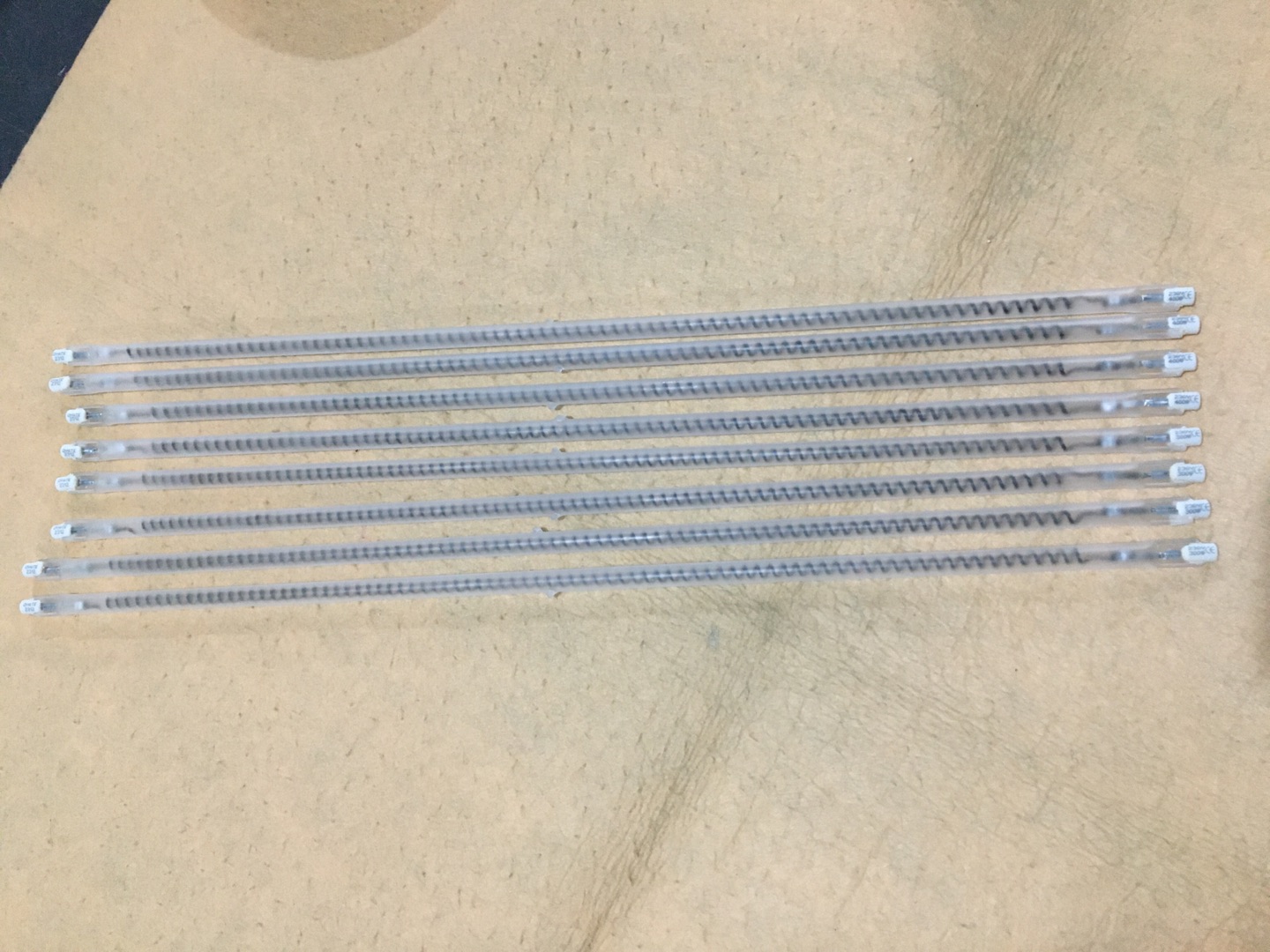

Ever tried to get a ton of heat out of a tiny space? It’s a pain. Usually, you’re stuck with straight filaments that just can’t put out enough punch without burning themselves out. So, we changed the shape. By folding the carbon fiber into an “M,” we basically sneak more heating element into the same length of tube. It’s a simple trick, but it lets us pack in way more wattage without stressing the material to the breaking point. Getting the heat where it actually needs to go Here is the cool part: the M-shape kills those annoying “cold spots” you get with linear elements. Because there’s more surface area, the infrared heat is more concentrated. It hits harder. And faster. You aren’t sitting around waiting for the machine to warm up; it ramps up almost instantly. The guts of the thing We use carbon fiber for the core because it’s a beast. Unlike old-school nichrome wire, this stuff doesn’t start sagging the moment things get hot. To keep it from oxidizing, we wrap the whole thing in high-purity quartz. It acts like a shield, but it’s clear enough that the short-wave IR passes right through without any trouble. One heads-up: folding the fiber puts a bit more pressure on the ends. We fixed that by using heavy-duty crimps so they don’t snap during the constant heating and cooling cycles. A quick warning before you install If you’re swapping these into an old rig,**double-check your voltage.**If they don’t match, the filament will pop the second you flip the switch. Not a fun way to start the day. These are perfect for things like PET blowing or plastic welding—basically anywhere you need “instant-on” heat. But remember, because these pack so much energy into a small area, the quartz tube gets seriously hot. Make sure your housing can handle that kind of radiant heat. And please, keep your reflectors polished. If they get dusty or grimey, the heat bounces right back into the tube. That’s a shortcut to burning out your lamp way sooner than you should. Keep them shiny, and the heaters will last.
